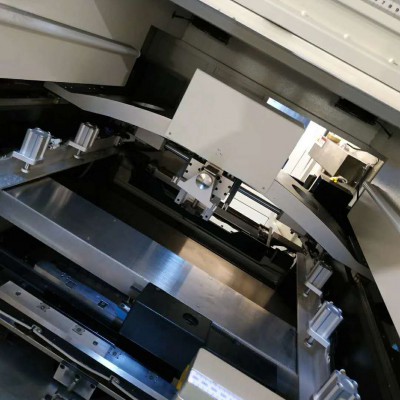

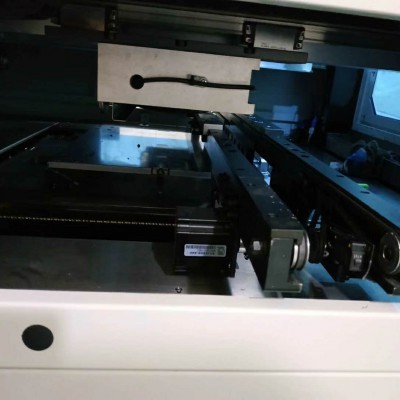

正实A5印刷机技术参数 | |||
Model型号 | A5 | ||
Item项目 | |||
网框尺寸 | Min Size | 470×370mm | |
Screen frames | Max Size | 737×737mm | |
|
Thickness | 25~40mm | |
PCB Min Size最小尺寸 | 50×50mm | ||
PCB Max Size尺寸 | 400×340mm | ||
PCB Thickness厚度 | 0.4~6mm | ||
PCB Warpage翘曲量 | <1% | ||
Transport Height传送高度 | 900±40mm | ||
Transport Direction传送方向 | Left-Right;Right-Left;Left-Left;Right-Right | ||
左-右;右-左;左-左;右-右 | |||
Transport Speed运输速度 | Max 1500mm/s(Programmable) | ||
Board Location | Support System | Magnetic Pin/Up-down table adjusted/support block | |
PCB的定位 | 支撑方式 | 磁性顶针/可调节顶升平台/等高块 | |
|
Clamping System | Side clamping,vacuum nozzle,Automation retractable Z pressure | |
|
夹紧方式 | 边夹;真空吸嘴;自动伸缩Z向压板 | |
Printer Head | Two independent motorised printhead | ||
印刷头 | 两个独立的直连式马达驱动印刷头 | ||
Squeegee Speed刮刀速度 | 6~200mm/sec | ||
Squeegee Pressure刮刀压力 | 0~15kg马达控制 | ||
Squeegee Angel刮刀角度 | 60°/55°/45° | ||
Squeegee Type刮刀类型 | Stainless steel(standard),plastic | ||
钢刮刀标准;胶刮刀 | |||
Stencil Separation Speed钢网分离速度 | 0.1~20mm/sec (Programmable) | ||
Cleaning System清洗方式 | Dry 、Wet、Vacuum (Programmable) | ||
干、湿、抽真空 | |||
Table Adjustment Ranges工作台调整范围 | X:±10mm;Y:±10mm;θ:±2° | ||
Solder Paste Inspection锡膏检测 | 2D Inspection(2D检测)Standard | ||
整机参数Machine | |||
Repeate Position Accuracy重复定位精度 | ±0.01mm | ||
Printing Accuracy印刷精度 | ±0.025mm | ||
Cycle Time印刷周期 | <7s(Exclude Printing & Cleaning) | ||
Product Changeover换线时间 | <5Min | ||
Air Required使用空气 | 4.5~6kg/cm2 | ||
Power Input电源 | AC:220±10%,50/60HZ,3KW | ||
Control Method控制方法 | PC Control | ||
Machine Dimensions机器外形尺寸 | 1220(L)×1355(W)×1500(H)mm | ||
Machine Weight机器重量 | Approx:1000kg |
