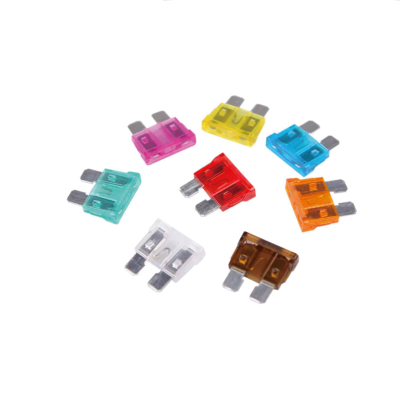

规格 Specifications
Breaking force: 1000A@80VDC
分断力：1000A@125V
Voltage Rating: 32-48-58-80-125VDC
额定电压：32-48-58-80-125VDC
Operating Temperature Range: -40˚C to +200˚C
工作温度范围：-40˚C to ~200˚C
Terminals: Ag plated zinc alloy
端子：锌合金
Housing Materials: Nylon/PC
外壳材质：尼龙/PC
Standards compliant: SAE J2077、ISO 8820、UL 248 Special Purpose Fuses
符合：SAE J2077，ISO 8820，UL 248专用熔断器
Dimensions/尺寸：
FUSE PARAMETERS：保险丝参数：
| Prt Number | Rating Current(A) | Rating Voltage(V) | Typ. | ColdResistance | I2t | Color |
| Voltage Drop | Kaltwiderstand | |||||
| (mV) | (mΩ) | |||||
| LDATC-01 | 1A | 32V/48V/63V/80V/125V | 176 | 123 | 0.4 | Black |
| LDATC-02 | 2A | 32V/48V/63V/80V/125V | 141 | 53.5 | 1.4 | Gray |
| LDATC-03 | 3A | 32V/48V/63V/80V/125V | 137 | 31.1 | 7.4 | Purple |
| LDATC-04 | 4A | 32V/48V/63V/80V/125V | 136 | 22.8 | 14 | Pink |
| LDATC-05 | 5A | 32V/48V/63V/80V/125V | 128 | 17.85 | 26 | Tan |
| LDATC-7.5 | 7.5A | 32V/48V/63V/80V/125V | 116 | 10.91 | 60 | Brown |
| LDATC-10 | 10A | 32V/48V/63V/80V/125V | 109 | 7.7 | 115 | Red |
| LDATC-15 | 15A | 32V/48V/63V/80V/125V | 102 | 4.8 | 340 | Blue |
| LDATC-20 | 20A | 32V/48V/63V/80V/125V | 98 | 3.38 | 520 | Yellow |
| LDATC-25 | 25A | 32V/48V/63V/80V/125V | 92 | 2.52 | 1080 | Natural |
| LDATC-30 | 30A | 32V/48V/63V/80V/125V | 84 | 1.97 | 1510 | Green |
| LDATC-35 | 35A | 32V/48V/63V/80V/125V | 87 | 1.61 | 2280 | Light green |
| LDATC-40 | 40A | 32V/48V/63V/80V/125V | 96 | 1.44 | 3310 | Orange |
Time-Current Characteristics：电流时间特征
| % of Rating | Opening Time | Opening Time Min / Max (s) |
| Nennstrom | ||
| 100 | 35~40 | 360,000 s / – |
| 110 | 1~30 | 360,000 s / – |
| 135 | 1~2 | 500Ms~600ms |
| 3~40 | 0.75 s / 600 s | |
| 200 | 1~2 | 100ms~5s |
| 3~40 | 0.15 s / 5 s | |
| 350 | 1~40 | 0.080 s / 500ms |
| 600 | 1~40 | 100ms / 150ms |
Time-Current Characteristic Curves：时间-电流特性曲线
